Size 3 Tibbo Project Box (TPB3)

The TPB3 fits one Size 3 Tibbo Project PCB (TPP3), Gen. 2, one original Size 3 Tibbo Project PCB (TPP3), or one original Size 3 Linux Tibbo Project PCB (LTPP3)*. It accommodates up to fourteen Tibbit modules and fourteen Tibbit connectors.

The TPB3 kit includes top and bottom covers, left and right walls, status LED light guide, screws, and paper inserts with transparent covers for marking wires and cables. Two sides of the TPB3 are formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard. The certification reports can be downloaded here.

* The newer LTPP3 (Gen. 2) boards should use the Size 3 Linux Tibbo Project Box (LTPB3).

Size3 Tibbo Project Box

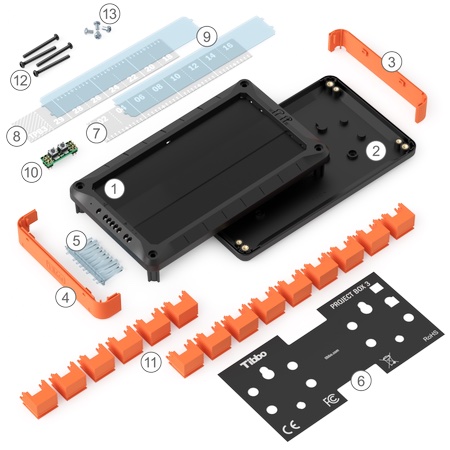

The list of parts included with the TPB3-KIT*

  1. Top cover
  2. Bottom cover
  3. Right wall
  4. Left wall
  5. LED light guide
  6. Back label
  7. Paper insert, bottom row
  8. Paper insert, top row
  9. Two paper insert covers
  10. MD/RST button PCB
  11. Fifteen blank Tibbit connector shells (PM12P1001-03)
  12. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
  13. Four PCB screws

* This SKU comprises an unassembled TPB3 delivered as a parts kit.

Size3 Tibbo Project Box

TPB3 — comes fully assembled;
includes the retails package
and remover tongs

Order the TPB3

The TPB3 enclosure can be ordered fully assembled (and in retail packaging), or as a parts kit.
You can also purchase all the parts separately.
