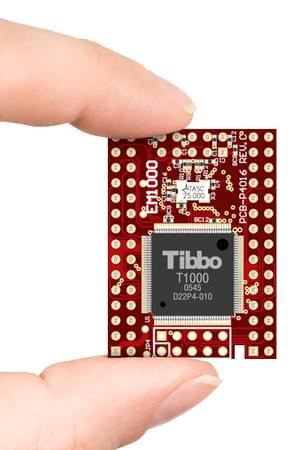

Hardware

Specifications:

• Powered by Tibbo OS (TiOS).
• 10/100BaseT auto-MDIX Ethernet port (no magnetics).
• Optional Wi-Fi interface (requires the WA2000 add-on module).
• Can control a 4G/LTE modem* (such as the SIM7500).
• Four high-speed serial ports (CMOS):
  • Baudrates of up to 921,600bps;
  • None/even/odd/mark/space parity modes;
  • 7 or 8 bits/character;
  • Full-duplex mode with RTS/CTS and XON/XOFF flow control;
  • Half-duplex mode with direction control;
  • Encoding and decoding of Wiegand and clock/data streams.
• 54 general-purpose I/O lines; 8 lines can work as interrupts.
• Square wave output (can be used for buzzer* control).
• 4 synchronous serial ports with SPI and I2C modes.
• Supports LCD and OLED panels*.
• Supports matrix and binary output keypads*.
• RTC with dedicated backup power input; optional onboard supercap.
• 22KB SRAM for Tibbo BASIC/C variables and data.
• 1MB flash memory for TiOS, application code, and file system.
• 2048-byte EEPROM for data storage.
• Four control lines for external status LEDs:
  • Two control lines for green and red main status LEDs;
  • Two control lines for Ethernet "link" and "100Mb" LEDs.
• Software- and hardware-controlled PLL for selecting high or low speed.
• Reliable power-on/ brown-out reset circuit.
• Power: 230mA @ 3.3V (100Base-T mode, full speed).
• Dimensions (LxWxH): 38.4 x 28.4 x 5.5mm.
• Prototyping-friendly 2.54mm (100mil) pin pitch.
• Operating temperature range: -40 ~ +70°C.
• Firmware is upgradeable through the serial port or network.
• Tibbo BASIC/C application can be debugged through the Ethernet LAN.
• CE- and FCC- certified.

*Must be connected externally.

See Also:

• EM2000 – superior upgrade to the EM1000 device
• WA2000 Wi-Fi add-on module
• EM1001 programmable IoT board

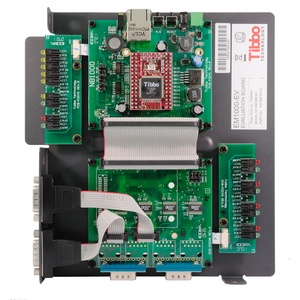

• EM1000EV development system

Programming

Create powerful, network-enabled applications in Tibbo BASIC and Tibbo C. Learn more...

Platform objects:

• beep — generates buzzer patterns.
• button — monitors the MD (setup) line.
• fd — manages the flash memory file system and direct sector access.
• io — handles I/O lines, ports, and interrupts.
• kp — works with matrix and binary keypads.
• lcd — controls graphical display panels.
• net — controls the Ethernet port.
• pat — "plays" patterns on up to five LED pairs.
• ppp — accesses the Internet over a serial modem (4G/LTE, etc.).
• pppoe — accesses the Internet over an ADSL modem.
• romfile — facilitates access to resource files (fixed data).
• rtc — keeps track of date and time.
• ser — controls serial ports (UART, Wiegand, clock/data modes).
• sock — socket comms (up to 16 UDP, TCP, and HTTP sessions).
• ssi — controls serial synchronous interface channels (SPI, I2C...).
• stor — provides access to the EEPROM.
• sys — in charge of general device functionality.
• wln — handles the Wi-Fi interface.

Function Groups: 27 string functions, 8 date/time conversion functions, encryption/hash calculation functions (RC4, MD5, SHA-1), and more.

Variable Types: Signed and unsigned 8-bit, 16-bit, and 32-bit types; floating point and string types; user-defined arrays and structures.
