Size 3 Linux Tibbo Project Box (LTPB3)

Tibbo Project System overview

This Project Box fits one Size 3 Linux Tibbo Project PCB (LTPP3), Gen. 2*. The LTPB3 accommodates up to eight Tibbit modules and eight Tibbit connectors.

The LTPB3 kit includes top and bottom covers, left and right walls, a special new back wall covering the row of connectors (Ethernet, USB, HDMI, SD slot), status LED light guide, screws, and paper inserts with transparent covers for marking wires and cables. The front wall of the LTPB3 is formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard. The certification reports can be downloaded here.

* Gen. 1 LTPP3 boards should use the Size 3 Tibbo Project Box (TPB3).

Size3 Tibbo Project Box

The list of parts included with the LTPB3-KIT*

  1. Top cover
  2. Bottom cover
  3. Right wall
  4. Left wall
  5. LED light guide
  6. Back label
  7. Paper insert, bottom row
  8. Paper insert, top row
  9. Two paper insert covers
  10. MD/RST button PCB
  11. Eight blank Tibbit connector shells (PM12P1001-03)
  12. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
  13. Four PCB screws
  14. Connector plate

* This SKU comprises an unassembled LTPB3 delivered as a parts kit.

Size3 Tibbo Project Box

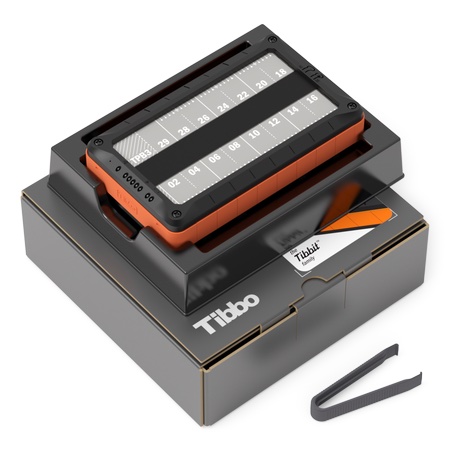

LTPB3 — comes fully assembled;
includes the retails package
and remover tongs

Order the LTPB3

The LTPB3 enclosure can be ordered fully assembled (and in retail packaging), or as a parts kit.
You can also purchase all the parts separately.
