* These are Tibbo BASIC/C-programmable devices and their function depends on the loaded app.
We offer many ready-to-use apps, among them a serial-over-IP (SoI) app and Modbus Gateway app.
RS485 Modbus SensorsCable Probes1-Wire / Single-Wire Sensors

1-Wire / Single-Wire Sensors

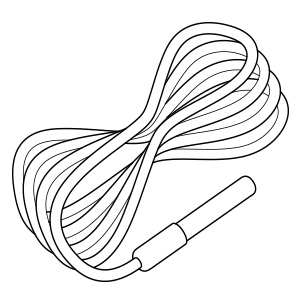

SNS-1WIRE-W-1M-1

SNS-1WIRE-W-1M-1

Sensing Capsule: Stainless steel, 30mm long with diameter of 6mm
Contains DS18B20 Temperature Sensor
Measurement Range: -55 to 100°C (-67°F to +212°F)
90cm cable withstanding 100°C with PVC material

Wires:
RED: Power, Black/Blue: GND, White/Yellow: DATA

For further information: https://www.adafruit.com/product/381

SNS-1WIRE-WH-1M-1

SNS-1WIRE-WH-1M-1

Sensing Capsule: Stainless steel, 30mm long with diameter of 6mm
Contains DS18B20 Temperature Sensor
Measurement Range: -55 to 125°C (-67°F to +257°F)
90cm cable withstanding 125°C with PTFE material

Wires:
Red: Power, Black: GND, White: DATA

For further information: https://www.adafruit.com/product/642

SNS-1WIRE-WH-3M-1

SNS-1WIRE-WH-3M-1

Sensing Capsule: Stainless steel, 31mm long with diameter of 6mm
Contains DS18B20 Temperature Sensor
Measurement Range: -55 to 125°C (-67°F to +257°F)
3 meter cable withstanding 125°C with PTFE material

Wires:
Red/Orange Stripe: Power, Black/White: GND, White/Blue Stripe: DATA

For further information: https://www.adafruit.com/product/3846

SNS-DHT22-1

SNS-DHT22-1

Measurement Range: TEMP:-40°C to 80°C (-40°F to +176°F), HUMI: 0 to 99.9%RH
Precision: ±2%RH ± 0.5°C

Wires:
RED: Power, Black: GND, Yellow: DATA
