Development Boards and Kits

Boards and kits presented here help you test and evaluate Tibbo modules. Some boards are compact enough to be suitable for use in production devices.

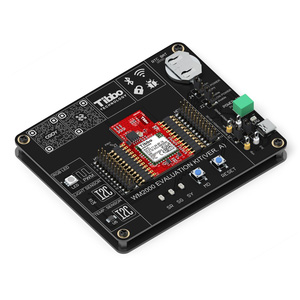

WM2000EV Evaluation KitWM2000EV Evaluation Kit
(the WM2000 is included in the Kit)

WM2000EV Evaluation Kit

The WM2000EV is a great starting point for evaluating the capabilities of theĀ WM2000, Tibbo's programmable Wi-Fi/BLE module.

The Kit was designed to be completely self-contained and enable the exploration of the module's features without having to wire in any external circuitry. To this end, the board comes equipped with all essential buttons and status LEDs, temperature and light sensors, PWM-controlled RGB LED, as well as the backup battery and the circuitry required to enable the WM2000's low-power mode.

The Kit is accompanied by a tutorial featuring several projects. Each project highlights one of the key target applications for the WM2000.

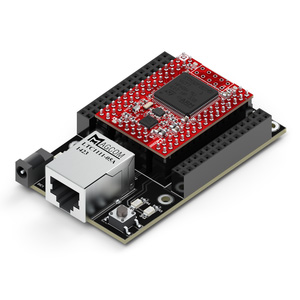

EM2000EV Development BoardEM2000EV, shown with EM2000
(must be purchased separately)

EM2000EV Development Board

This evaluation board offers the bare essentials required for testing the EM2000 Tibbo BASIC/C-programmable IoT module. The board carries the sockets for the module, additional sockets for connecting to external circuitry, a power jack, and a power regulator, RJ45 jack (Ethernet port), MD button, and three status LEDs.

The EM2000 module is not included with the board and must be purchased separately.

For more information, see the EM2000EV documentation

EM1206SK Starter Kit

EM1206SK Starter Kit

The EM1206EV board plus accessories. The board comes with the RJ203+EM1206 module combination (soldered in) and, optionally, the WA2000 Wi-Fi add-on.

Also included on the board are the RJ45 jack with magnetics, power jack and regulator, one RS232 port with a DB9 connector, Wi-Fi add-on socket, LEDs, MD (setup) button, and a pin header for accessing the module's I/O pins.

For more information, see the EM1206EV documentation.

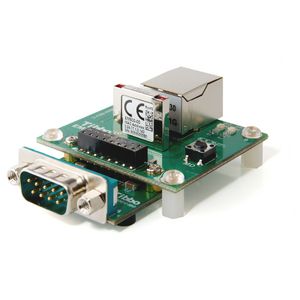

EM510EV Development System

EM510EV Development System

This kit is a two-board design consisting of a mainboard and an I/O board, which is available in several versions.

The mainboard carries a socket for the EM510 "MiniMo" module, RJ45 jack with magnetics, power jack and regulator, LEDs, and the MD (setup) button.

For more information, see the EM510EV documentation.



This is a DS1206 BASIC/C-programmable controller without a housing.

Ethernet connectivity. 3-channel RS232 port with power input/output on pin 9 of the DB9 connector.

Note: The DS1206N ships preloaded with the SoI app.
