The DS110X Family of Programmable Serial Controllers

Inspired by Your Feedback

Building on the worldwide success of our earlier products, the family of DS110x BASIC- and C-programmable serial controllers integrates everything we learned from you about building serial device servers.

We learned that you wanted a compact device, with a budgetary price tag, and with a range of available options to suit the needs of various applications. You named Wi-Fi, PoE, display, RS232, RS485, DIN rail and wall mounting options.

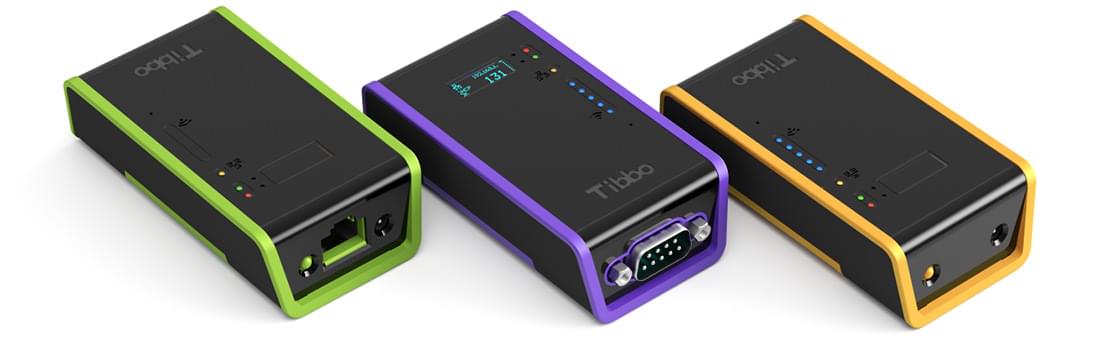

The DS110x family packs your wishlist into a stylish housing that is a mere 90 x 48 x 25mm in size. Enjoy the product, it was built for you.

Programmable in
Tibbo BASIC and C

Feature-rich and easy-to-learn, Tibbo BASIC and Tibbo C programming languages open up a world of application possibilities. Control serial devices and machinery. Collect, store, and manipulate data. Communicate with the AggreGate Server, and more.

Ready to go

Coding is not your thing? Use the preloaded Serial-over-IP (SoI) application or download one of our free ready-to-use apps, like the Modbus Gateway apllication. Our experts can also design an application for you. You spec it, we do the rest.

Value

The entry-level DS1100 offers all the basic functionality at an attractive price point. The device features a single-channel RS232 port and can be ordered with a power-over-Ethernet option.

Performance

The DS1101 and DS1102 devices are powerful and versatile. Available options include the Wi-Fi interface, OLED display, power-over-Ethernet, and multi-channel RS232 or RS232/422/485 ports.

Choice of serial ports

The DS110x family offers multiple serial port options:

DS1100 – simple RS232 port with power input
DS1101 – 3.5-channel RS232 port with power input/output
DS1102 – 3-channel RS232/422/485 port

Optional Wi-Fi

Looking to improve your system's reliability by providing an additional communication path in case the Ethernet link goes down? Planning to go all-wireless? Order your DS1101 or DS1102 with the Wi-Fi option.

Optional power-over-Ethernet (PoE)

Cut the power cord and power your DS110x directly through the Ethernet cable!

The PoE module of DS110x devices is a true 802.3af device. It is compatible with a wide range of PoE-enabled switches and "power inserters."

Optional OLED display

The available 96x32 OLED display is perfect for simple text and graphics.

Show messages, icons, status info, and prompts. To get inspired, see how we use the display in our Serial-over-IP (SoI) application.

Mounting not Optional

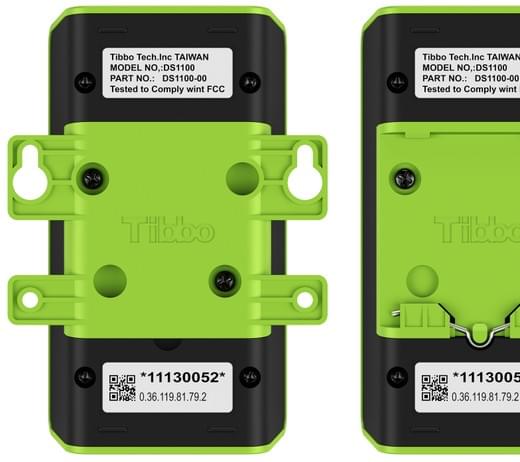

The DIN rail mounting plate is included with each DS110x shipped. Not just a slap-on afterthought, our DIN rail plate is artfully fused into the DS110x body and accentuates the device appearance.

Placing your DS110x on the wall? One wall mounting plate comes with each DS110x as well. Permanent of semi-permanent installation can be achieved with two or four mounting screws.

Comparison Table

	DS1100	DS1101	DS1102

	See detailed spec and order...	See detailed spec and order...	See detailed spec and order...
Serial Interface	Single-channel RS232	3.5-channel RS232	3-channel RS232/ 2-channel RS422/ 1-channel RS485
Channels: Squeezing Multiple Serial Ports Onto a Single DB9 Devices supporting this feature have a single DB9M connector and are priced as single-port products, yet pack several independent serial channels. Have no use for those DSR and DTR lines? Turn them into RX and TX lines of an additional serial channel. Don't want CTS and RTS either? That's one more RX/TX pair! Our SoI application defines 15 different configurations or "port mappings" to choose from, starting from a standard single-channel configuration (RX, TX, CTS, RTS, DSR, DTR, and DCD) and ending with the 3.5-channel setup (RX, TX, RX2, TX2, RX3, TX3, and RX4). Splitting wires can be conveniently carried out with theTB1100 adaptor.
CPU	Economical (T2000)	Baseline (T1000)
Power on DB9	Power in	Power in/out (you application can control the power output)	-
Pass-through Power Devices supporting this feature can be powered through pin 9 of the RS232 (DB9M) connector. Alternatively, they can power an attached serial device through this pin. Power output on pin 9 is software-controllable.
Ethernet Port	10/100BaseT
Wi-Fi	-	Optional
OLED Display	-	Optional
Power-over-Ethernet	Optional
Buzzer	-	Yes
Timekeeping	-	Onboard RTC (no backup battery)
Flash disk	512K for TiOS and application code	1MB for TiOS, application code, and the hardened fault-tolerant file system
EEPROM	208 bytes	2048 bytes
	See detailed spec and order...	See detailed spec and order...	See detailed spec and order...
