Size 2 Tibbo Project Box With LCD and Keypad (TPB2L)

Tibbo Project System overview

This TPB2L fits one Size 2 Tibbo Project PCB (TPP2), Gen. 2 or one original Size 2 Tibbo Project PCB (TPP2). It accommodates up to six Tibbit modules and six Tibbit connectors.

The TPB2L is like TPB2, except that its front is occupied by a 320x240 TFT LCD and a 4-key sensor keypad.

The TPB2L kit includes top and bottom covers, left and right walls, status LED light guide, LCD, keypad, screws, and several other small parts. Two sides are formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard. The certification reports can be downloaded here.

Size2 Tibbo Project Box

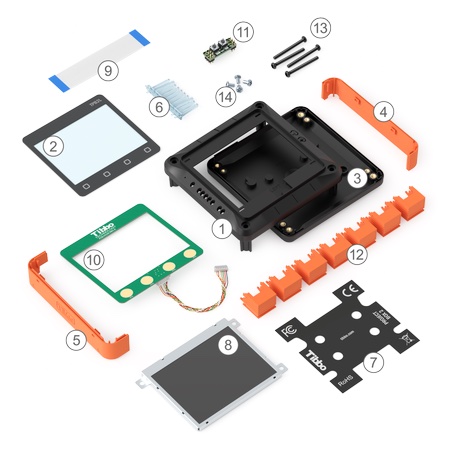

The list of parts included with the TPB2L-KIT*

  1. Top cover
  2. Faceplate (LCD window)
  3. Bottom Cover
  4. Right wall
  5. Left wall
  6. LED light guide
  7. Back label
  8. 320x240 TFT LCD
  9. LCD cable
  10. Sensor keypad PCB and cable
  11. MD/RST button PCB
  12. Seven blank Tibbit connector shells (PM12P1001-03)
  13. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
  14. Four PCB screws

* This SKU comprises an unassembled TPB2L delivered as a parts kit.

Size2L Tibbo Project Box

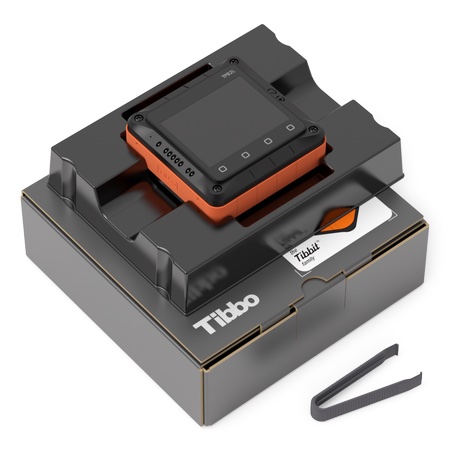

TPB2L — comes fully assembled;
includes the retails package
and remover tongs

Order the TPB2L

The TPB2L enclosure can be ordered fully assembled (and in retail packaging), or as a parts kit.
You can also purchase all the parts separately.
