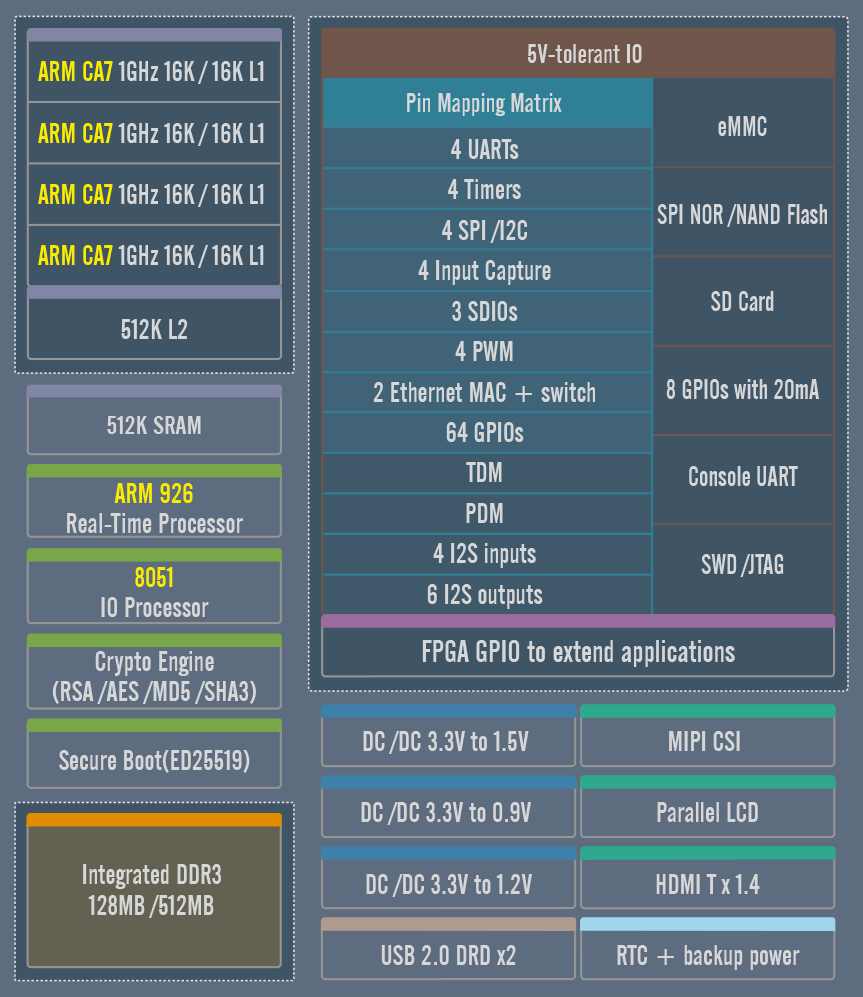

PLUS1 (SP7021) Hardware Specifications

  • Easy-to-use 20x20mm LQFP176-EP package.

  • Processing cores:

    • ARM Cortex-A7 (CA7) quad core:
      • Operating speed up to 960MHz;
      • NEON multimedia processing engine (SIMDv2/VFPv4 ISA);
      • 16KB L1 I-cache and 16KB L1 D-cache;
      • 512KB unified L2 cache;
      • Generic Interrupt Controller (GIC) v2.0.
    • ARM926 real-time core:
      • Operating speed up to 202MHz;
      • 16KB I/D cache;
      • 32KB L1 I-cache and 32KB L1 D-cache.
    • 8051 low-power core:
      • Selectable 32KHz or 202MHz operating speed;
      • Intended to be used as a supervisory core;
      • Low-power operation—500uA @ 32KHz for the entire IC;
    • All IO lines and peripherals are accessible from all cores of the chip.
  • Single 3.3V power*:

    • Built-in regulators for 1.5V, 1.2V*, and 0.9V power;
    • Only a few passive components to be added externally.
  • Integrated DDR3 DRAM:

    • SP7021-IS: 128MB;
    • SP7021-IF: 512MB.
  • General-purpose IO (GPIO) ports:

    • Nine 8-bit ports (P0-8);
    • All GPIO lines have 3.3V logic levels;
    • 16mA source/sink current for all lines of GPIO port 0;
    • GPIO lines of ports 1-8 are 5V-tolerant;
    • 8 individual interrupt lines;
    • Interrupt lines can be configured as wake-up lines of the chip;
    • Each GPIO line can be individually:
      • Tri-stated (work as an input) or enabled (work as outputs);
      • Configured as a push-pull or open collector output;
      • Configured as a regular or Schmitt trigger input;
      • Each line's signal can be inverted on the way in or out.
    • Two ways of controlling GPIO lines:
      • Through 8-bit registers (8 lines read or written simultaneously);
      • Using bitwise access to individual lines.
  • Flexible Peripheral Multiplexing (PinMux):

    • Any line of these peripherals can be connected to any line of P1-8:
      • Dual Ethernet MACs;
      • SDIO interface;
      • Two PWM modules (with 4 channels in each module);
      • Four SPI modules;
      • Four I2C modules;
      • Four enhanced UARTs;
      • Four timers/counters;
      • 8 interrupts.
  • Dual PinMuxable Ethernet MACs:

    • Two IEEE 802.3 10/100Mb ports with RMII interface;
    • Support for half- and full-duplex communications;
    • Two operating modes:
      • Single NIC/daisy chain—the chip acts as an unmanaged switch transparently routing external traffic between two ports:
        • The built-in switch features a 1K MAC address table with programmable aging time.
      • Dual NICs—two independent Ethernet interfaces.
    • Support for IEEE802.1Q VLAN tagging and un-tagging;
    • Support for MAC cloning and MAC security;
    • Support of 4 traffic classes (per IEEE802.1D-2004).
  • Five UARTs:

    • Four PinMuxable Enhanced UARTs:
      • 128-byte TX and 128-byte RX FIFOs on each UART;
      • Optional automatic RTS/CTS flow control.
    • One fixed console UART (TX and RX lines only) in P0.
    • Baudrates up to 921'600bps (with baud rate deviation under 3%);
    • Clocking from internal 27MHz source or CLK pin;
    • Independent TX and RX DMA channels for each port.
  • Flash interface:

    • Supports eMMC, SPI NAND, and SPI NOR memories;
    • Supports BCH error correction;
    • 1-bit, 2-bit, and 4-but interface modes.
  • PinMuxable SD2.0 interface.

  • PinMuxable SDIO (SD2.0) interface (for connecting a Wi-Fi/BT module).

  • Two OTG USB2.0 ports with Linux boot and USB video class support.

  • Four PinMuxable SPI modules:

    • Support for master and slave modes;
    • 8-byte RX and 8-byte TX FIFOs in each module;
    • Independent TX and RX DMA channels in each module.


* An external 1.2V power regulator is required if the chips current consumption on the 1.2V rail exceeds 1200mA.

  • Four PinMuxable I2C modules:

    • Support for master and slave modes;
    • Optional clock stretching;
    • 32-byte RX and 32-byte TX FIFOs in each module;
    • Independent TX and RX DMA channels in each module.
  • Two PinMuxable PWM modules:

    • Four synchronized PWM channels in each module;
    • Clock frequency up to 70MHz;
    • 8-bit resolution for each channel.
  • Up to four 8-bit or up to two 16-bit PinMuxable timers/counters.

  • Four PinMuxable capture modules.

  • MIPI-CSI camera port:

    • Supports up to two cameras;
    • Compliant with:
      • MIPI CSI-2 Specification, rev. 1.01;
      • MIPI D-PHY interface Specification, v1.1.
    • Supported modes:
      • High-speed (HS) mode—1.0Gbps per lane;
      • Low-power (LP) mode—10Mbps per lane.
    • Camera resolution up to 1328x864 (Including non-image data);
    • Frame rate up to 60fps;
    • 10 bits per pixel color depth;
    • 810Mbps total bandwidth;
    • Power-down mode;
    • MIPI CSI-2 short- and long-packet formats;
    • Supports MIPI CSI-2 one data lane;
    • Supports MIPI CSI-2 RAW8 and RAW10 data formats.
  • MIPI video interface supports resolutions up to 1366x768/1312x816.

  • HDMI 1.4 video interface supports resolutions up to 720p.

  • TFT LCD controller with parallel bus interface (res. up to 320x240x24).

  • I2S/SPDIF/PWM audio output for up to five channels.

  • PDM interface for 8-channel MEMS microphone array.

  • 32-bit FPGA bus IO (FBIO) interface.

  • Temperature sensor for estimating the internal temperature of the IC.

  • Real-time clock (RTC):

    • Alarm function with a dedicated output pin;
    • Dedicated backup power input;
    • Built-in charging circuit for a rechargeable battery (supercapacitor).
  • 128-byte one-time programmable (OTP) memory:

    • Preprogrammed before shipping:
      • Vendor and device ID;
      • The serial number;
      • Two registered MAC addresses.
    • 64 bytes are available to the user;
    • No high voltage or additional hardware required for programming.
  • SWD and JTAG debug interfaces.

  • Watchdog timer.

  • Secure boot: boot image verified by ED25519 algorithm.

  • Crypto engines:

    • PKA engine (RSA);
    • Hash engine (SHA3, MD5);
    • Encryption/decryption engine (AES).
  • Industrial operating temperature range: -40C ~ +85C.

  • Low EMI simplifies product certification.

  • Modern, Yocto-based Linux distribution.

  • 10-year supply guarantee.
