Test applications for sensor Tibbits (##28, 29, 30, 35, 36)

Release Date:	11/03/14
Most Recent Update:	11/03/14
Project files:	Open Tibbit #28 GitHub repository Open Tibbit #29 GitHub repository Open Tibbit #30 GitHub repository Open Tibbit #35 GitHub repository Open Tibbit #36 GitHub repository
Minimum TIDE version:	5.02.09
Minimum TiOS version:	TPP2, TPP3: 3.60.00; TPP2(G2), TPP3(G2): 3.60.87
Platform:	TPS2W, TPS3W, TPS2W(G2), TPS3W(G2)
Try it on:	TPS, add Tibbits as needed

You will need:

• TPP2, TPP2(G2), TPP3, or TPP3(G2) board
• At least one of the following Tibbits: #28, #29, #30, #35, or #36;
• One Tibbit #00-3;
• Optionally, one Tibbit #9 or #10 (12V->5V regulator)
• Optionally, one Tibbit #18 (power jack)

The last two Tibbits are necessary if you are going to power your rig from a 12V power adaptor. Alternatively you can supply regulated +5V power directly to the TPP.

All projects in this collection output sensor measurements using sys.debugprint. Therefore, you must run these projects in the debug mode.

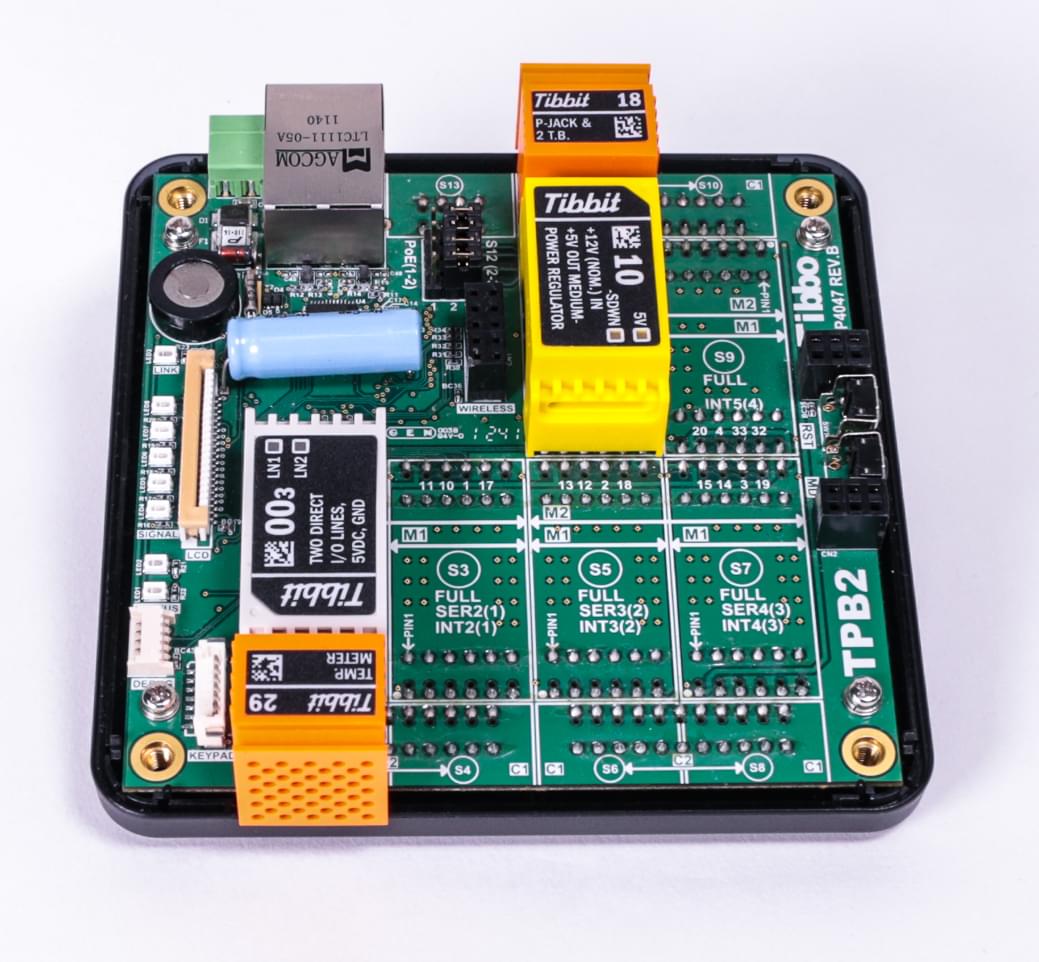

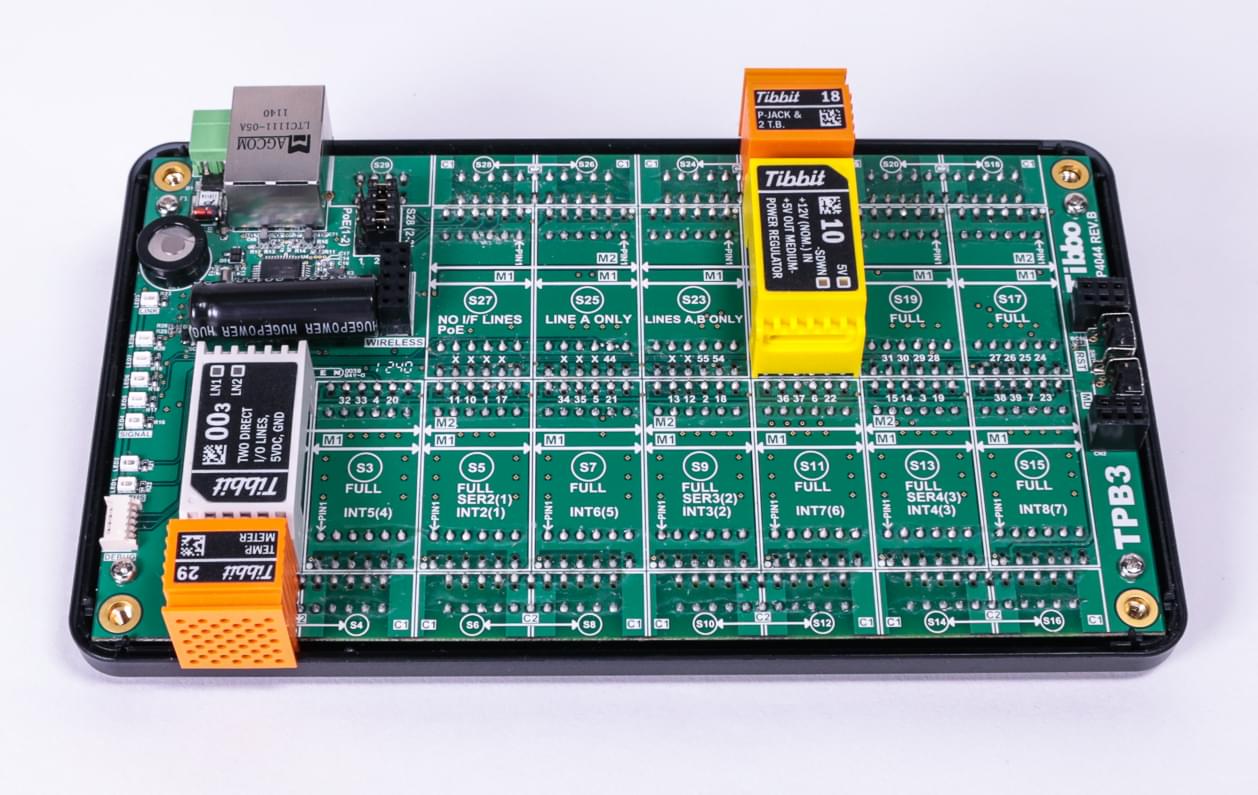

Photos below illustrate the test arrangement. All sensor Tibbits are plugged into the same socket S1.
