Tibbo Project Box (TPB) Enclosures

Most projects require an enclosure. Designing one is a tough job. Making it beautiful is even tougher, and may also be prohibitively expensive.

Not to worry – your Tibbo Project System can optionally be ordered in a Tibbo Project Box (TPB).

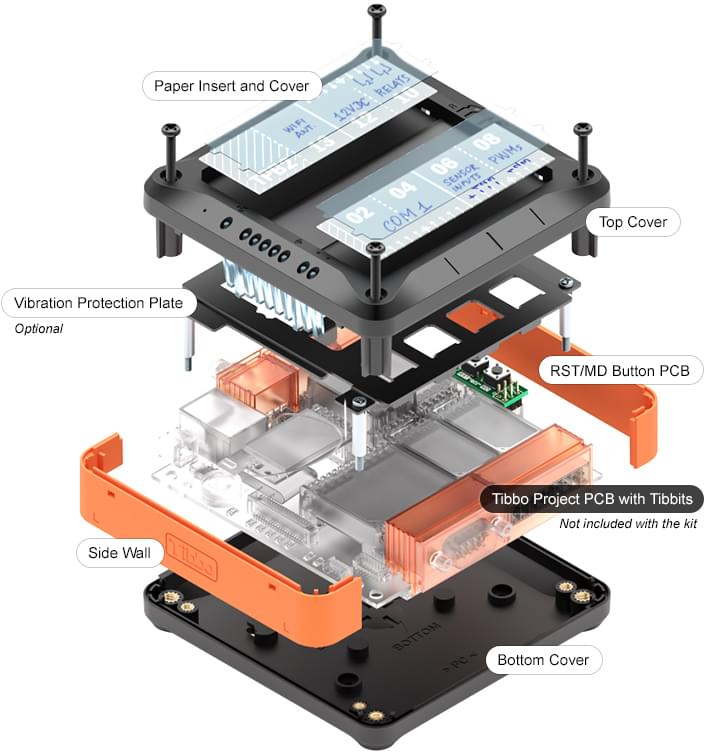

The ingenious feature of the TPB is that its top and bottom walls are formed by C1 and C2 Connector Tibbits. The result is a neat, professionally looking housing every time, even for projects with the production quantity of one. This eliminates a huge problem of any low-volume production operation – the necessity to fit into and customize (drill, cut, etc.) off-the-shelf enclosures.

Tibbo Project BoxTibbo Project Box

Three Boxes to Choose From

Available in three versions, our TPS kits include easy-to-assemble shells and all necessary small parts (screws, etc.). Each Box can be ordered with the available DIN rail mounting as well as the vibration protection kit (VPK) that will secure Tibbits in their sockets.

For a small fee we can assemble your Tibbo Project Box/System, or you can choose to assemble everything yourself.

TPB2

Houses the TPP2,
up to 6 Tibbit Modules, and
up to 6 Tibbit Connectors

Size 2 Tibbo Project Box

TBP2L

Houses the TPP2, LCD and keypad,
up to 6 Tibbit Modules, and
up to 6 Tibbit Connectors

Size 2 Tibbo Project Box with LCD

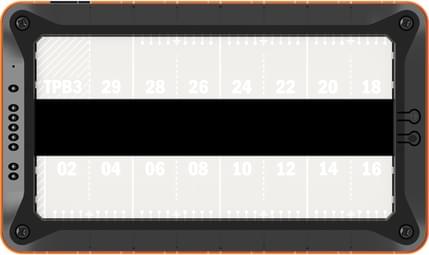

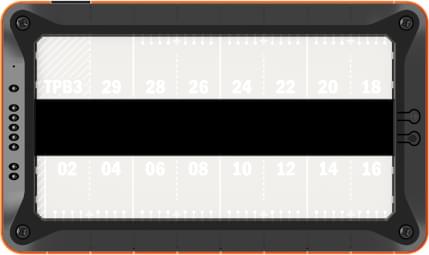

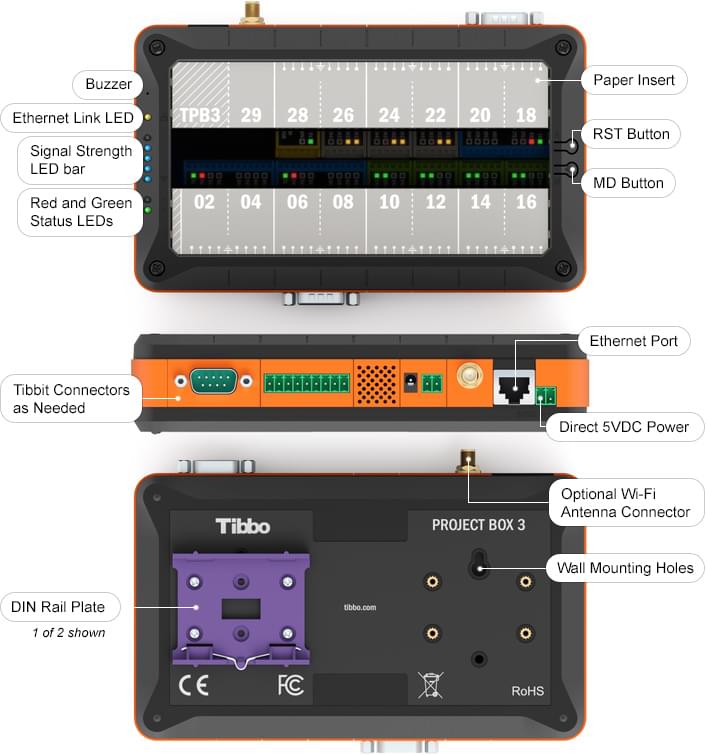

TPB3

Houses the TPP3,
up to 14 Tibbit Modules, and
up to 14 Tibbit Connectors

Size 3 Tibbo Project Box with LCD

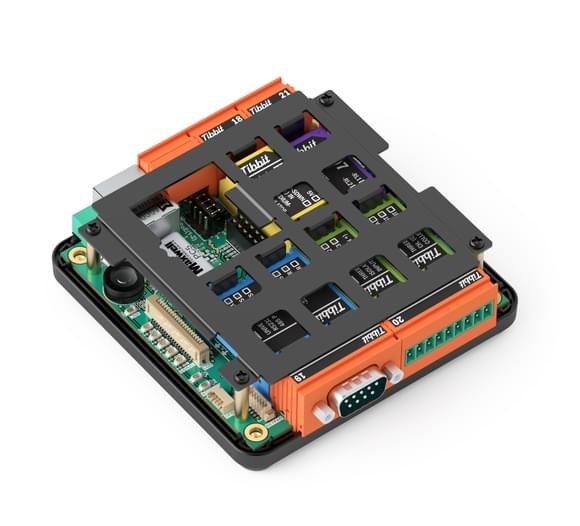

Vibration Protection Kit (VPK)

This kit includes a stamped metal plate and four special screws.

The plate installs over Tibbits (and the GA1000 Wi-Fi module) thus securing them in their sockets.

The use of the VPK is recommended for industrial, on-vehicle, and any other applications where vibration is a concern.

Vibration Protection Kit

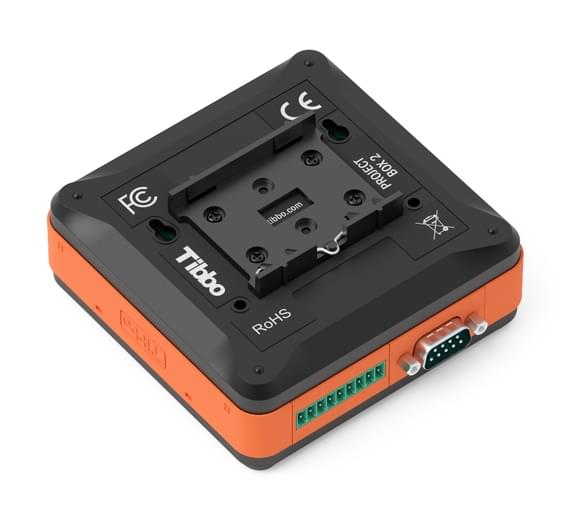

DIN Rail Mounting Kit

The DIN rail mounting kit includes a spring-loaded plastic bracket and a set of screws.

Size 2 Tibbo Project Boxes require a single kit per box, while the size 3 boxes need two kits each.

DIN Rail Mount
