Size 2 Tibbo Project Box (TPB2)

The TPB2 fits one Size 2 Tibbo Project PCB (TPP2), Gen. 2 or one original Size 2 Tibbo Project PCB (TPP2). It accommodates up to six Tibbit modules and six Tibbit connectors.

The TPB2 kit includes top and bottom covers, left and right walls, status LED light guide, screws, and paper inserts with transparent covers for marking wires and cables. Two sides are formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard. The certification reports can be downloaded here.

Size2 Tibbo Project Box

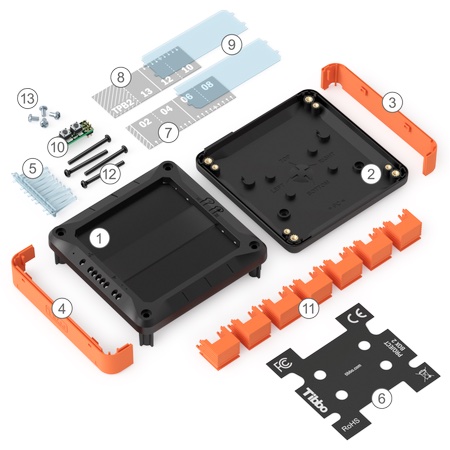

The list of parts included with the TPB2-KIT*

  1. Top cover
  2. Bottom cover
  3. Right wall
  4. Left wall
  5. LED light guide
  6. Back label
  7. Paper insert, bottom row
  8. Paper insert, top row
  9. Two paper insert covers
  10. MD/RST button PCB
  11. Seven blank Tibbit connector shells (PM12P1001-03)
  12. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
  13. Four PCB screws

* This SKU comprises an unassembled TPB2 delivered as a parts kit.

Size2 Tibbo Project Box

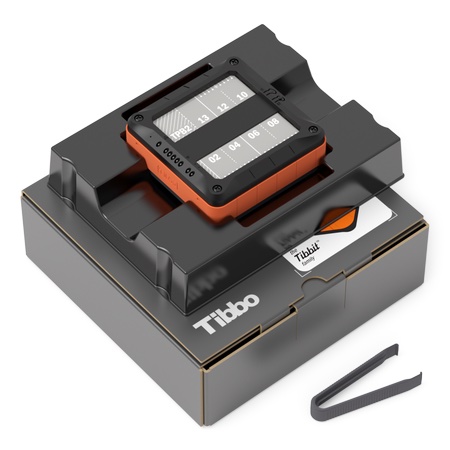

TPB2 — comes fully assembled;
includes the retails package
and remover tongs

Order the TPB2

The TPB2 enclosure can be ordered fully assembled (and in retail packaging), or as a parts kit.
You can also purchase all the parts separately.
