Serial-over-IP on Tibbo External Controllers

Tibbo offers two lines of external device servers: the DS110X family of serial controllers and Tibbo Project System (TPS) devices in select configurations.

Both the DS110X and TPS offerings comprise general-purpose BASIC/C-programmable devices running our open-source serial-over-IP (SoI) application.

We welcome you to edit and change the SoI application in any way you please!

Visit the Programmable Devices section to learn how you can modify and create applications for our programmable devices.

SoI on DS110X Programmable Serial Controllers

Compact and Stylish

The DS1100, DS1101, and DS1102 are general-purpose Tibbo BASIC/C-programmable serial controllers capable of running our standard serial-over-IP (SoI) application.

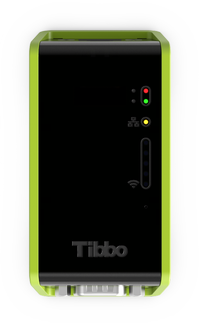

The DS1100 is an entry-level, economically priced serial controller with a standard RS232 port. The DS1100 can optionally be powered through pin 9 of the DB9M connector.

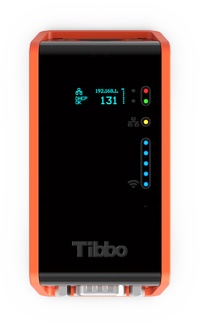

The DS1101 features a 3.5-channel RS232 port and the ability to power itself via pin 9 of the DB9M connector. Alternatively, the DS1001 can output 12V* power through the same pin 9 (internal power switch is software-controlled).

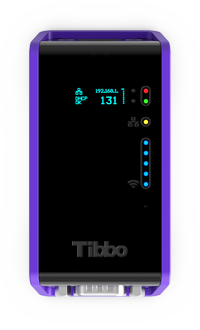

The DS1102 is equipped with a multiprotocol port that can be set up as a 3-channel RS232 port, two-channel RS422 port, or a single-channel half-duplex RS485 port.

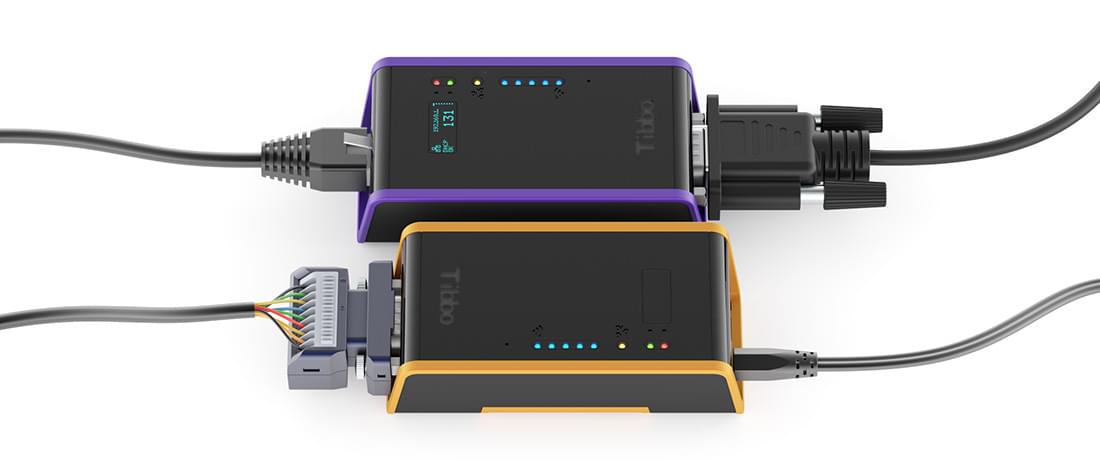

All three devices can be equipped with the available PoE power module. In addition, the DS1101 and DS1102 can be supplied with the available Wi-Fi interface and OLED display.

The SoI application takes advantage of all the hardware features of the DS110X family, including, where available, the ability to control the power output on pin 9, RS232, RS422, and RS485 modes, multi-channel ports, Wi-Fi connectivity, and OLED display.

* Nominal, the actual output voltage depends on the input voltage applied the device.

Channels: Squeezing Multiple Serial Ports Onto a Single DB9

Devices supporting this feature have a single DB9M connector and are priced as single-port products, yet pack several independent serial channels.

Have no use for those DSR and DTR lines? Turn them into RX and TX lines of an additional serial channel. Don't want CTS and RTS either? That's one more RX/TX pair!

Our serial-over-IP (SoI) application defines 15 different configurations or "port mappings" to choose from, starting from a standard single-channel configuration (RX, TX, CTS, RTS, DSR, DTR, and DCD) and ending with the 3.5-channel setup (RX, TX, RX2, TX2, RX3, TX3, and RX4).

Splitting wires can be conveniently carried out with the TB1100 adaptor.

DS1100
DS1101
DS1102
DS1100DS1101DS1102
Serial Interface
Single-channel RS2323.5-channel RS2323-channel RS232/
2-channel RS422/
1-channel RS485

Channels: Squeezing Multiple Serial Ports Onto a Single DB9

Devices supporting this feature have a single DB9M connector and are priced as single-port products, yet pack several independent serial channels.

Have no use for those DSR and DTR lines? Turn them into RX and TX lines of an additional serial channel. Don't want CTS and RTS either? That's one more RX/TX pair!

Ourserial-over-IP (SoI) application defines 15 different configurations or "port mappings" to choose from, starting from a standard single-channel configuration (RX, TX, CTS, RTS, DSR, DTR, and DCD) and ending with the 3.5-channel setup (RX, TX, RX2, TX2, RX3, TX3, and RX4).

Splitting wires can be conveniently carried out with theTB1100 adaptor.

CPU
Economical (T2000)High-performance (T1000)
In onlyIn/Out
(SoI application can turn the power output on and off)

Pass-through Power

Devices supporting this feature can be powered through pin 9 of the RS232 (DB9M) connector, and/or can power another small device, such as a barcode scanner, through this pin.

Power output on pin 9 is software-controllable. Our serial-over-IP (SoI) application includes a related setting.

Ethernet Interface
10/100BaseT
Wi-Fi
-Optional
OLED Display
-Optional, SoI application displays network conditions, serial communications parameters, and other useful information
Power-over-Ethernet
Optional
Buzzer
-Yes

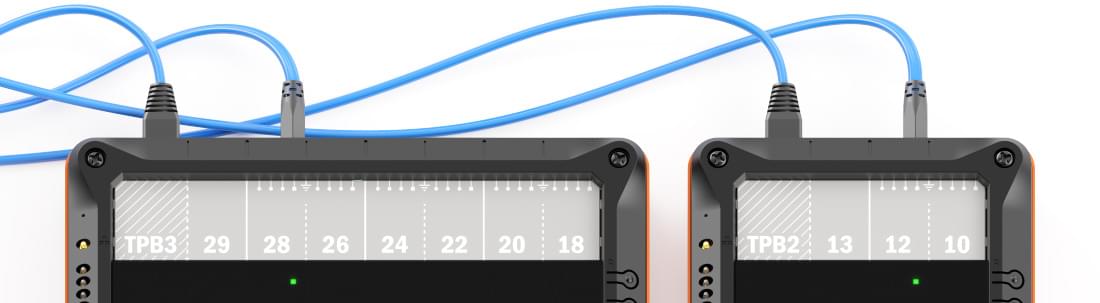

TPS-based Serial-over-IP Controllers

Our Tibbo Project System (TPS) is an ideal platform for creating multi-port device servers. With TPS, you don't have to settle for a close match. Need exactly three serial ports? Define a TPS configuration with just three ports! Select other options just as easily.
Take what you need, leave out what you don't.

TPS3TPS2TPS2L
Available serial
port types
TTL, simple RS232 (TX, RX, RTS, and CTS only), universal RS232/422/485 ports
(RS232: TX, RX, RTS, CTS, DTR, DSR; RS422: +/– TX, +/– RX, +/– RTS, +/– CTS;
RS485: +/– TX/RX, half-duplex)
Max. number of
serial ports

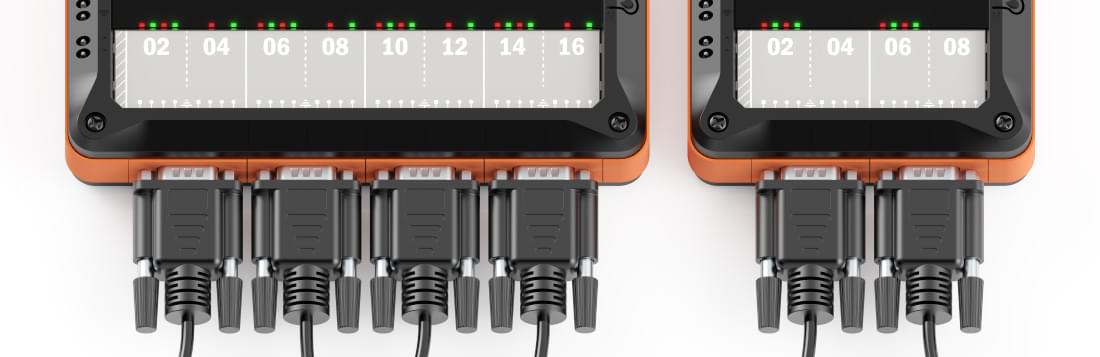

4 ports, available with DB9M or terminal block connectors2 ports with DB9M connectors (all lines present),
4 ports with terminal blocks (reduced number of lines)
TFT LCD
-Yes
Ethernet Port
10/100BaseT
Wi-Fi
Optional
GPRS
Optional, reduces the number of available serial ports
Power options
12V, 24V, PoE
LED status indication
Two general status LEDs, one Ethernet link LED, five LEDs
for Wi-Fi/GPRS status and signal strength indication
Serial-over-IP Controller Configurator

Hundreds of Possible Configurations

With so many options to choose from the full list of models covering all possible "device server" TPS configurations would be enormous.

This is why we've created an easy-to-use selector allowing you to define your ideal SoI controller. Jump to the store, go trough the options, and your device is ready for ordering.

Earlier Serial-Over-IP Controllers

Presented above are current Tibbo's 3rd-generation device servers based on our BASIC/C-programmable controllers.

1st- and 2nd-generation device servers, as well as earlier 3rd-generation models are still in production and you can order them from our online store:

First generation: DS100.

Second generation: DS203.

Earlier third generation: DS1206.

DS202 Device Server
