UniQb 3D Construction Set

Introducing UniQb — a 3D construction set for your 3D printing project. 3D printers revolutionized the production of custom parts, but they are only useful in a narrow range of part dimensions. Blocky and thick parts come out strong and beautiful. Large, thin, or long parts are fragile and warp in production. This is where UniQb comes in. Build your project's skeletal structure from UniQb beams and cubes, then 3D print small custom parts. This is fast, inexpensive, and clean, and the resulting structure is impressively robust.

UniQb was invented by Dmitry Slepov, a co-founder of Tibbo Technology. Unlike the stamped, bendy pieces of popular Meccano and Erector sets, UniQb parts are three-dimensional and very sturdy. Each part is solid and has mounting holes on all sides. For more information on this amazing new way to build things, continue onto uniqb.com.

The Original QB

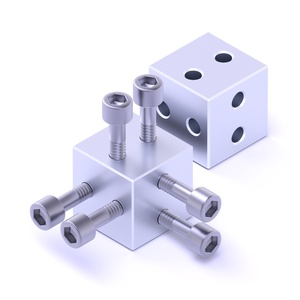

The Original QB

This is a QB – a simple, versatile aluminum cube with a 10mm side. Each face of the QB has a pair of mounting holes with a distance of 5mm between them. All holes are through holes, oriented in such a way that they do not intersect within the QB.

QBs come in two versions. The original QB has threaded holes. The plain QB has holes without threading.

BMC Beam

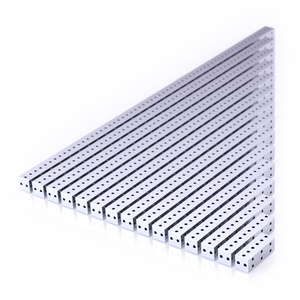

BMC Beam

Think of BMC beams as cubes arranged into a line. Each beam consists of 10mm sections. There are two holes per each exposed side of each section. As with QBs, these holes never intersect inside the beam. Holes at beam ends are blind and threaded. Holes on beam sides are threadless through holes.

Beams come in odd lengths. You can order beams comprising 3, 5, 7,… 31 steps. That is, the range of available beam lengths is 3-31cm in 2cm steps.

Hex Screw

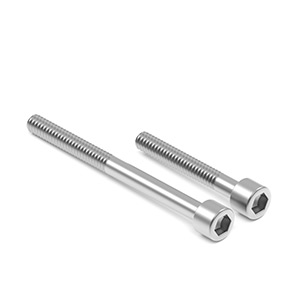

Hex Screw

These are high-quality M2x14 hex screws.
